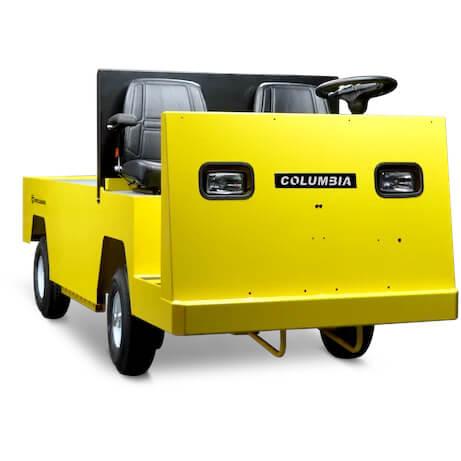

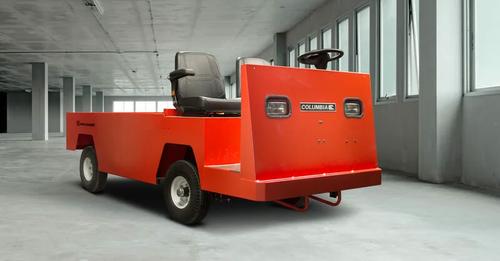

Columbia Payloader
Electric Vehicle for Carrying, Towing & Material Handling
The Columbia Payloader is specifically engineered with a compact, narrow chassis layout to safely maneuver through tight warehouse aisles and industrial corridors. It is a highly adaptable, pure electric utility vehicle engineered for heavy-duty industrial tasks. It a trusted workhorse for carrying payloads, towing equipment, and safely transporting personnel through tight warehouse aisles and complex manufacturing facilities.
Core Capabilities
- Payload Capacity: Carrying capacity from 2,400 to 4,000 lbs across Standard, Heavy, and Super Duty configurations.
- Towing Capacity: Towing range from 6,500 to 18,000 lbs depending on the selected duty package.
- Design & Form Factor: Slim profile, an exceptional turning radius, and a heavy-duty 12-gauge structural steel body to replace traditional forklifts safely.
- Powertrain: Powered by a 48V DC or AC electric motor with a driving range of up to 30 miles and a maximum forward speed of 12 to 14 MPH.
- Seating: Comes standard with adjustable bucket seats for 2 passengers, expandable to 4 passengers using an optional foldaway second-row seat.
Technical Dimensions
| Metric | Dimension |
|---|---|
| Length | 120.25 in |
| Width | 46.00 in |
| Wheelbase | 65.00 inches |
| Ground Clearance | 4.50 in |
| Step Height | 16.50 inches |
| Load Bed Height | 29.00 inches |
| Cargo Deck Dimensions | 76.00 inches L × 45.00 inches W |
| Turning Radius | 264.00 in (Curb-to-Curb) / 92.00 in (Intersecting Aisle) |
