Columbia Stockchaser
Electric Vehicle for Cargo

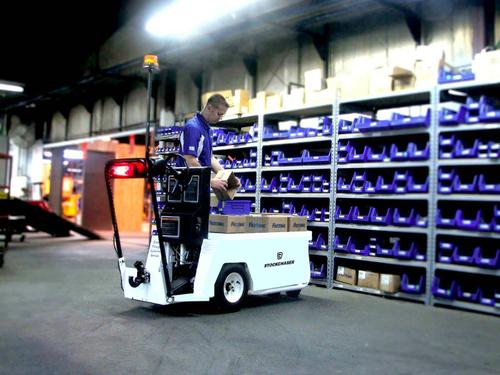

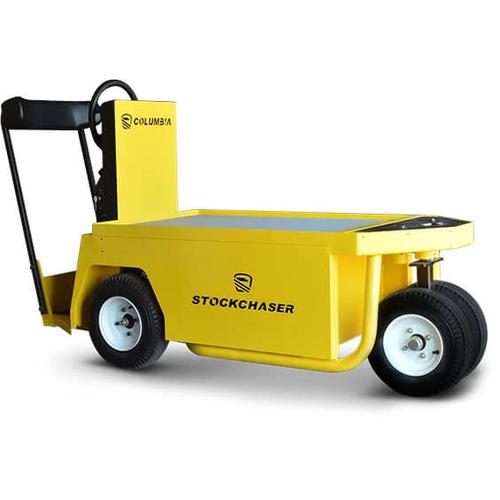

The Columbia Stockchaser is a compact, highly maneuverable, pure electric warehouse burden carrier designed to replace larger material handlers in narrow-aisle environments. It features a stand-up operator configuration with an adjustable backrest for driver comfort and visibility.
Key Configurations & Packages
- Material Handling: Commonly outfitted with integrated 4-step or 6-step ladders, turning the vehicle into an efficient order-picker for accessing high warehouse shelves.
- Passenger Shuttling: The specialized Stockchaser Transport package transforms the chassis to safely accommodate up to six passengers, serving indoor guest transit needs across airports and hospital terminals.
- Autonomous Operation: Can be integrated with Cyngn software to operate as a self-driving autonomous vehicle featuring built-in obstacle detection to reduce floor labor dependencies.
Specifications & Performance
| Feature | 24-Volt Configuration | 48-Volt Configuration |
|---|---|---|
| Load Capacity | 1,200 lbs | 1,000 lbs. |
| Towing | 1,000 lbs to 6,000 lbs w/Tow Package) | 1,000 lbs to 6,000 lbs w/Tow Package) |
| Range | Up to 20 miles | Up to 40 miles |
| Max Speed | 8.5 to 9 MPH | 8.5 to 9 MPH |
| Turning Radius | 66.5 inches | 66.5 inches (Intersecting aisle) |
| Weight | 830 lbs | 990 lbs |
| Dimensions | 83.5in × 29.5 in | 83.5in × 29.5 in |
| Ground Clearance | 3.5 in | 3.5in |
